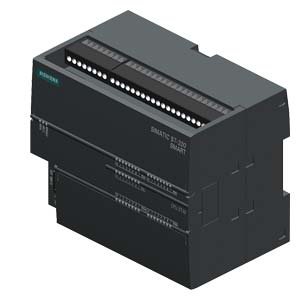

CPU ST60, DC/DC/DC, 36DI/24DO (6ES72881ST600AA1)

Name: CPU ST60, DC/DC/DC, 36DI/24DO (6ES72881ST600AA1)
Brand: Siemens
SKU: 3027
Availability: InStock

In Stock

~~₹83,300.00~~ ₹79,550.00

In Stock

Add to wishlist Compare

Other people want this. 4 people have this in their carts right now.

Request Quote

Categories: PLC, Uncategorized Brand: Siemens

SIMATIC S7-200 SMART, CPU ST60, CPU, DC/DC/DC, onboard I/O: 36 DI 24 V DC; 24 DO 24 V DC; power supply: DC 20.4 – 28.8 V DC, program/data memory 50 KB

Description
Reviews (0)

Description

Technical data

SIMATIC S7-200 SMART, CPU ST60, CPU, DC/DC/DC, onboard I/O: 36 DI 24 V DC; 24 DO 24 V DC; power supply: DC 20.4 – 28.8 V DC, program/data memory 50 KB

General information

Product type designation

CPU ST60 DC/DC/DC

Engineering with

● Programming package

STEP 7 Micro/WIN SMART

Installation type/mounting

Rail mounting

Yes; Standard – DIN rail

Supply voltage

Rated value (DC)

24 V

permissible range, lower limit (DC)

20.4 V

permissible range, upper limit (DC)

28.8 V

Input current

Current consumption, max.

710 mA; 24 V DC

Inrush current, max.

11.5 A; at 28.8 V

Output current

Current output, max.

300 mA; 24 V DC Sensor Power

for backplane bus (5 V DC), max.

1.4 A; max. 5 V DC for EM bus

Power loss

Power loss, max.

20 W

Memory

Type of memory

DDR

Flash

Yes

RAM

Yes

Memory available for user data

20 kbyte

Memory size

30 kbyte; Program memory

Micro Memory Card

Yes; microSDHC Card (optional)

Backup

● present

Yes; Maintenance free, RTC requires 7 days.

CPU processing times

for bit operations, typ.

150 ns; / instruction

for word operations, typ.

1.2 µs; / instruction

for floating point arithmetic, typ.

3.6 µs; / instruction

Address area

I/O address area

● Inputs

144 byte; 256 bit of digital inputs & 56 words of analog inputs

● Outputs

144 byte; 256 bit of digital outputs & 56 words of analog outputs

Time of day

Clock

● Type

Hardware clock, no battery backup

● Hardware clock (real-time)

Yes

● Backup time

7 d

● Deviation per day, max.

120 s; within 120s/month at 25 °C

Digital inputs

Number of digital inputs

36; Integrated

● of which inputs usable for technological functions

6; HSC (High Speed Counting)

Source/sink input

Yes

Number of simultaneously controllable inputs

all mounting positions

— up to 40 °C, max.

Input voltage

● Type of input voltage

● Rated value (DC)

24 V

● for signal “0”

5 V DC at 1 mA

● for signal “1”

15 V DC at 2.5 mA

Input current

● for signal “0”, max. (permissible quiescent current)

1 mA

● for signal “1”, typ.

1 mA

Input delay (for rated value of input voltage)

for standard inputs

— parameterizable

Yes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four

— at “0” to “1”, min.

0.2 ms

— at “0” to “1”, max.

12.8 ms

for interrupt inputs

— parameterizable

Yes

for technological functions

— parameterizable

Yes; 6 Single phase: 4 HSCs at 200 kHz; 2 HSCs at 30 kHz 4 A/B phase: 2 HSCs at 100 kHz; 2 HSCs at 20 kHz

Cable length

● shielded, max.

500 m; 50 m for technological functions

● unshielded, max.

300 m; for technological functions: No

Digital outputs

Number of digital outputs

24; Transistor

● of which high-speed outputs

3; 100 kHz Pulse Train Output

Switching capacity of the outputs

● with resistive load, max.

0.5 A

● on lamp load, max.

5 W

Output voltage

● for signal “1”, min.

20 V DC

Output current

● for signal “1” rated value

0.5 A

● for signal “0” residual current, max.

10 µA

Output delay with resistive load

● “0” to “1”, max.

3 µs; of the standard outputs, max. 3 µs; of the pulse outputs, max. (Q a.0 to Q a.3) 1 µs

● “1” to “0”, max.

200 µs; of the standard outputs, max. 200 µs; of the pulse outputs, max. (Q a.0 to Q a.3) 50 µs

Switching frequency

● of the pulse outputs, with resistive load, max.

100 kHz

Relay outputs

● Number of relay outputs

Cable length

● shielded, max.

500 m

● unshielded, max.

150 m

Interfaces

Number of industrial Ethernet interfaces

Number of RS 485 interfaces

1. Interface

Interface type

PROFINET

Isolated

Yes; Transformer isolated, 1,500V AC

automatic detection of transmission rate

Yes; 10/100 Mbit/s

Autonegotiation

Yes

Autocrossing

Yes

Interface types

● RJ 45 (Ethernet)

Yes

Protocols

● PROFINET IO Controller

Yes; Since V2.4

● PROFINET IO Device

Yes; I-Device since V2.5

PROFINET IO Controller

● Transmission rate, max.

100 Mbit/s

Services

— Number of connectable IO Devices, max.

— Updating time

4 ms; The minimum value of the update time also depends on the communication component set for PROFINET IO, on the number of IO devices and the quantity of configured user data.

Address area

— Inputs, max.

128 byte; Per device

— Outputs, max.

128 byte; Per device

2. Interface

Interface type

RS 485 (max. 187.5 kbps)

Interface types

● RS 485

Yes

PROFIBUS DP master

Services

— S7 communication

Yes

Protocols

Supports protocol for PROFINET IO

Yes; RT Controller (since FW V2.4) & I-Device (since FW V2.5)

PROFIBUS

Yes; Via CM DP module

Protocols (Ethernet)

● TCP/IP

Yes

communication functions / header

S7 communication

● supported

Yes

● as server

Yes

● as client

Yes

Test commissioning functions

Status/control

● Status/control variable

Yes

Forcing

● Forcing

Yes

Integrated Functions

Counter

● Number of counters

PID controller

Yes; PID closed-loop control function: Continuous controller outputs, binary controller outputs, automatic/manual mode, max. 8 loops

Number of pulse outputs

Potential separation

Potential separation digital inputs

● between the channels, in groups of

Potential separation digital outputs

● between the channels

● between the channels, in groups of

EMC

Interference immunity against discharge of static electricity

● Interference immunity against discharge of static electricity acc. to IEC 61000-4-2

Yes

— Test voltage at air discharge

8 kV

— Test voltage at contact discharge

4 kV

Interference immunity against high-frequency electromagnetic fields

● Interference immunity against high-frequency radiation acc. to IEC 61000-4-3

Yes; 10 V/m, 80 to 1 000 MHz (to IEC 61000-4-3); 10 V/m, 900 MHz, 1.89 GHz, 50% ED (to IEC 61000-4-3)

Interference immunity to cable-borne interference

● Interference immunity on supply lines acc. to IEC 61000-4-4

Yes; 2 kV acc. to IEC 61000-4-4, burst

● Interference immunity on signal cables acc. to IEC 61000-4-4

Yes; ±2 kV acc. to IEC 61000-4-4, Burst

Interference immunity against conducted variable disturbance induced by high-frequency fields

● Interference immunity against high frequency current feed acc. to IEC 61000-4-6

Yes; 10 V, 150 kHz to 80 MHz (to IEC 61000-4-6)

Emission of radio interference acc. to EN 55 011

● Limit class A, for use in industrial areas

Yes; EN 61000-6-4, interference emission: Intended for use in industrial areas.

Emission of conducted and non-conducted interference

● Interference emission via line/AC current cables

EN 61000-6-4, interference emission: Intended for use in industrial areas.

Standards, approvals, certificates

CE mark

Yes

Ambient conditions

Free fall

● Fall height, max.

0.3 m; five times, in product package

Ambient temperature during operation

● min.

-20 °C

● max.

60 °C

● horizontal installation, min.

-20 °C

● horizontal installation, max.

60 °C

● vertical installation, min.

-20 °C

● vertical installation, max.

50 °C

Ambient temperature during storage/transportation

● min.

-40 °C

● max.

70 °C

Air pressure acc. to IEC 60068-2-13

● Storage/transport, min.

660 hPa

● Storage/transport, max.

1 080 hPa

Altitude during operation relating to sea level

● Installation altitude, min.

-1 000 m

● Installation altitude, max.

2 000 m

Relative humidity

● Operation at 25 ℃ without condensation, max.

95 %

configuration / header

configuration / programming / header

Programming language

— LAD

Yes

— FBD

Yes

— STL

Yes

Dimensions

Width

175 mm

Height

100 mm

Depth

81 mm

Weights

Weight, approx.

528.2 g

Classifications

	Version	Classification
eClass	14	27-24-22-07
eClass	12	27-24-22-07
eClass	9.1	27-24-22-07
eClass	9	27-24-22-07
eClass	8	27-24-22-07
eClass	7.1	27-24-22-07
eClass	6	27-24-22-07
ETIM	9	EC000236
ETIM	8	EC000236
ETIM	7	EC000236
IDEA	4	3565
UNSPSC	15	32-15-17-05

Approvals / Certificates

General Product Approval

Reviews

There are no reviews yet.
