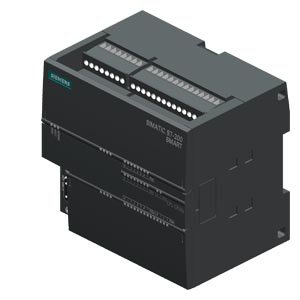

CPU CR30s, AC/DC/RELAY, 18DI/12DO (6ES72881CR300AA1)

Name: CPU CR30s, AC/DC/RELAY, 18DI/12DO (6ES72881CR300AA1)
Brand: Siemens
SKU: 3034
Availability: InStock

In Stock

~~₹31,965.00~~ ₹28,215.00

In Stock

Add to wishlist Compare

Request Quote

Categories: PLC, Uncategorized Brand: Siemens

SIMATIC S7-200 SMART CPU CR30s, COMPACT CPU, AC/DC/RELAY, ONBOARD I/O: 18 DI 24V DC; 12DO RELAY 2A; POWER SUPPLY: AC, 85 – 264 V AC AT 47 – 63 HZ, PROGRAM/DATA MEMORY: 20 KB

Description
Reviews (0)

Description

General information

Product type designation

CPU CR30 AC/DC/relay

Engineering with

● Programming package

STEP 7 Micro/WIN SMART

Installation type/mounting

Rail mounting

Yes; Standard – DIN rail

Supply voltage

Rated value (AC)

230 V; 230 V AC (L1, N)

● 120 V AC

Yes; 85 to 132 V AC

● 230 V AC

Yes; 170 to 264 V AC

permissible range, lower limit (AC)

85 V

permissible range, upper limit (AC)

264 V

Reverse polarity protection

Line frequency

● permissible range, lower limit

47 Hz

● permissible range, upper limit

63 Hz

Load voltage L+

● Rated value (DC)

24 V

● permissible range, lower limit (DC)

5 V

● permissible range, upper limit (DC)

250 V

Input current

Current consumption (rated value)

90 mA; At 220 V AC

Current consumption, max.

90 mA; At 220 V AC

Inrush current, max.

16.3 A; at 264 V

Power loss

Power loss, max.

7 W

Memory

Type of memory

DDR

Flash

Yes

RAM

Yes

Micro Memory Card

CPU processing times

for bit operations, typ.

150 ns; / instruction

for word operations, typ.

1.2 µs; / instruction

for floating point arithmetic, typ.

3.6 µs; / instruction

Hardware configuration

Integrated power supply

Time of day

Clock

● Type

Software clock

● Hardware clock (real-time)

Digital inputs

Number of digital inputs

18; Integrated

● of which inputs usable for technological functions

4; HSC: 4 @ 100 kHz single phase, 2 @ 50 kHz A/B phase

Source/sink input

Yes

Input voltage

● Rated value (DC)

24 V

● for signal “0”

< 5 V DC

● for signal “1”

+15 to +30 V

Input current

● for signal “0”, max. (permissible quiescent current)

1 mA

● for signal “1”, typ.

4 mA

Input delay (for rated value of input voltage)

for standard inputs

— parameterizable

Yes; 0.2 µs, 0.4 µs, 0.8 µs, 1.6 µs, 3.2 µs, 6.4 µs and 12.8 µs, selectable in 4 groups

— at “0” to “1”, min.

0.2 µs

— at “0” to “1”, max.

12.8 µs

for interrupt inputs

— parameterizable

Yes

Cable length

● shielded, max.

500 m; Standard input: 500 m, high-speed counters: 50 m

● unshielded, max.

300 m

Digital outputs

Number of digital outputs

12; Relays

Switching capacity of the outputs

● with resistive load, max.

2 A

● on lamp load, max.

30 W; 30 W with DC, 200 W with AC

Output delay with resistive load

● “0” to “1”, max.

10 ms; max.

● “1” to “0”, max.

10 ms; max.

Switching frequency

● of the pulse outputs, with resistive load, max.

1 Hz

Relay outputs

● Number of relay outputs

● Number of operating cycles, max.

100 000; mechanically 10 million, at rated load voltage 100 000

Cable length

● shielded, max.

500 m

● unshielded, max.

150 m

Interfaces

Number of industrial Ethernet interfaces

Number of RS 485 interfaces

Optical interface

1. Interface

Interface type

RS 485 (max. 187.5 kbps)

Isolated

Yes; 500 V AC or 707 V DC

Interface types

● RS 485

Yes

● Design of the connection

9-pin sub D socket

Protocols

Supports protocol for PROFINET IO

PROFIBUS

Protocols (Ethernet)

● TCP/IP

EMC

Interference immunity against discharge of static electricity

● Interference immunity against discharge of static electricity acc. to IEC 61000-4-2

Yes

— Test voltage at air discharge

8 kV

— Test voltage at contact discharge

4 kV

Interference immunity against high-frequency electromagnetic fields

● Interference immunity against high-frequency radiation acc. to IEC 61000-4-3

Yes; 10 V/m, 80 to 1 000 MHz (to IEC 61000-4-3); 10 V/m, 900 MHz, 1.89 GHz, 50% ED (to IEC 61000-4-3)

— Frequency range of the RF radiation

10 V/m for 80 MHz ~ 1 GHz, 3 V/m for 1.4 GHz ~ 2 GHz, 3 V/m for 87 MHz ~ 108 MHz, 174 MHz ~ 230 MHz, 470 MHz ~ 790 MHz, 1.4 GHz ~ 2 GHz, 1 V/m for 2 GHz ~ 2.7 GHz

Interference immunity to cable-borne interference

● Interference immunity on supply lines acc. to IEC 61000-4-4

Yes; 2 kV acc. to IEC 61000-4-4, burst

● Interference immunity on signal cables acc. to IEC 61000-4-4

Yes; ±2 kV acc. to IEC 61000-4-4, Burst

Interference immunity against voltage surge

● Interference immunity on supply lines acc. to IEC 61000-4-5

Yes; ±1 kV (acc. to IEC 61000-4-5; 1995; surge symm.), ±2 kV (acc. to IEC 61000-4-5; 1995; surge asymm.), no external protective circuit required

● asymmetric interference

— Test voltage on supply cables

2 kV

— Test voltage on signal cables >30m

2 kV

Interference immunity against conducted variable disturbance induced by high-frequency fields

● Interference immunity against high frequency current feed acc. to IEC 61000-4-6

Yes; 10 V, 150 kHz to 80 MHz (to IEC 61000-4-6)

Emission of radio interference acc. to EN 55 011

● Limit class A, for use in industrial areas

Yes; EN 61000-6-4, interference emission: Intended for use in industrial areas.

Emission of conducted and non-conducted interference

● Interference emission via line/AC current cables

EN 61000-6-4, interference emission: Intended for use in industrial areas.

Degree and class of protection

IP degree of protection

IP20

Standards, approvals, certificates

CE mark

Yes

Ambient conditions

Free fall

● Fall height, max.

0.5 m; five times, in product package

Ambient temperature during operation

● min.

0 °C

● max.

55 °C

● horizontal installation, min.

0 °C

● horizontal installation, max.

55 °C

● vertical installation, min.

0 °C

● vertical installation, max.

45 °C

Ambient temperature during storage/transportation

● min.

-40 °C

● max.

70 °C

Air pressure acc. to IEC 60068-2-13

● Storage/transport, min.

660 hPa

● Storage/transport, max.

1 080 hPa

Altitude during operation relating to sea level

● Installation altitude, min.

-1 000 m

● Installation altitude, max.

2 000 m

Relative humidity

● Operation at 25 ℃ without condensation, max.

95 %

configuration / header

configuration / programming / header

Programming language

— LAD

Yes

— FBD

Yes

— STL

Yes

Dimensions

Width

110 mm

Height

100 mm

Depth

81 mm

Weights

Weight, approx.

424 g; approx.

Classifications

	Version	Classification
eClass	14	27-24-22-07
eClass	12	27-24-22-07
eClass	9.1	27-24-22-07
eClass	9	27-24-22-07
eClass	8	27-24-22-07
eClass	7.1	27-24-22-07
eClass	6	27-24-22-07
ETIM	9	EC000236
ETIM	8	EC000236
ETIM	7	EC000236
IDEA	4	3565
UNSPSC	15	32-15-17-05

Approvals / Certificates

General Product Approval
