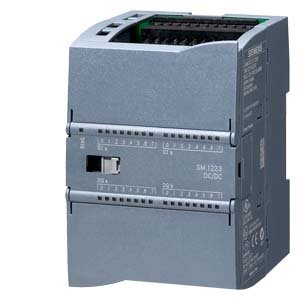

Digital I/O SM 1223, 16DI/16DO (6ES72231BL320XB0)

In Stock
₹56,440.00
In Stock
Add to wishlist Compare
Other people want this. 7 people have this in their carts right now.
Request Quote
Categories: , Brand:

SIMATIC S7-1200, Digital I/O SM 1223, 16 DI/16 DO, 16 DI 24 V DC, Sink/Source, 16 DO, transistor 0.5 A

Description

General information
Product type designation SM 1223, DI 16×24 V DC, DQ 16×24 V DC
Supply voltage
Rated value (DC) 24 V
permissible range, lower limit (DC) 20.4 V
permissible range, upper limit (DC) 28.8 V
Input current
from backplane bus 5 V DC, max. 185 mA
Digital inputs
● from load voltage L+ (without load), max. 4 mA; per channel
output voltage / header
supply voltage of the transmitters / header
● present Yes
Power loss
Power loss, typ. 4.5 W
Digital inputs
Number of digital inputs 16
● in groups of 2
Input characteristic curve in accordance with IEC 61131, type 1 Yes
Number of simultaneously controllable inputs
all mounting positions
— up to 40 °C, max. 16
horizontal installation
— up to 40 °C, max. 16
— up to 50 °C, max. 16
vertical installation
— up to 40 °C, max. 16
Input voltage
● Type of input voltage DC
● Rated value (DC) 24 V
● for signal “0” 5 V DC at 1 mA
● for signal “1” 15 V DC at 2.5 mA
Input current
● for signal “0”, max. (permissible quiescent current) 1 mA
● for signal “1”, min. 2.5 mA
● for signal “1”, typ. 4 mA
Input delay (for rated value of input voltage)
for standard inputs
— parameterizable Yes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four
for interrupt inputs
— parameterizable Yes
Cable length
● shielded, max. 500 m
● unshielded, max. 300 m
Digital outputs
Number of digital outputs 16
● in groups of 1
Short-circuit protection No; to be provided externally
Limitation of inductive shutdown voltage to L+ (-48 V)
Switching capacity of the outputs
● with resistive load, max. 0.5 A
● on lamp load, max. 5 W
Output voltage
● Rated value (DC) 24 V
● for signal “0”, max. 0.1 V; with 10 kOhm load
● for signal “1”, min. 20 V DC
Output current
● for signal “1” rated value 0.5 A
● for signal “1” permissible range, max. 0.5 A
● for signal “0” residual current, max. 10 µA
Output delay with resistive load
● “0” to “1”, max. 50 µs
● “1” to “0”, max. 200 µs
Total current of the outputs (per group)
horizontal installation
— up to 50 °C, max. 8 A; Current per mass
Relay outputs
Switching capacity of contacts
— with inductive load, max. 0.5 A
— on lamp load, max. 5 W
— with resistive load, max. 0.5 A
Cable length
● shielded, max. 500 m
● unshielded, max. 150 m
Interrupts/diagnostics/status information
Alarms
● Diagnostic alarm Yes
Diagnostics indication LED
● for status of the inputs Yes
● for status of the outputs Yes
Potential separation
Potential separation digital inputs
● between the channels, in groups of 2
Potential separation digital outputs
● between the channels, in groups of 1
● between the channels and backplane bus 500 V AC
Degree and class of protection
IP degree of protection IP20
Standards, approvals, certificates
CE mark Yes
CSA approval Yes
UL approval Yes
cULus Yes
FM approval Yes
RCM (formerly C-TICK) Yes
KC approval Yes
Marine approval Yes
Ecological footprint
● environmental product declaration Yes
Global warming potential
— global warming potential, (total) [CO2 eq] 123 kg
— global warming potential, (during production) [CO2 eq] 12.1 kg
— global warming potential, (during operation) [CO2 eq] 111 kg
— global warming potential, (after end of life cycle) [CO2 eq] -0.434 kg
Ambient conditions
Free fall
● Fall height, max. 0.3 m; five times, in product package
Ambient temperature during operation
● min. -20 °C
● max. 60 °C
● horizontal installation, min. -20 °C
● horizontal installation, max. 60 °C
● vertical installation, min. -20 °C
● vertical installation, max. 50 °C
● permissible temperature change 5°C to 55°C, 3°C / minute
Ambient temperature during storage/transportation
● min. -40 °C
● max. 70 °C
Air pressure acc. to IEC 60068-2-13
● Storage/transport, min. 660 hPa
● Storage/transport, max. 1 080 hPa
Relative humidity
● Operation at 25 ℃ without condensation, max. 95 %
connection method
required front connector Yes
Mechanics/material
Enclosure material (front)
● Plastic Yes
Dimensions
Width 70 mm
Height 100 mm
Depth 75 mm
Weights
Weight, approx. 310 g
Classifications
Version Classification
eClass 14 27-24-22-04
eClass 12 27-24-22-04
eClass 9.1 27-24-22-04
eClass 9 27-24-22-04
eClass 8 27-24-22-04
eClass 7.1 27-24-22-04
eClass 6 27-24-22-04
ETIM 9 EC001419
ETIM 8 EC001419
ETIM 7 EC001419
IDEA 4 3566
UNSPSC 15 32-15-17-05
